Compatibility:
Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Compatible Adapters and freewheel bodies
ID360 Shimano / Sram freewheel body (V3430101 - Delivered on the wheel)
ID360 XD-R freewheel body (V2580101)
ID360 Campagnolo freewheel body (V3440101)
ID360 Shimano / Sram Light freewheel body (V3850101)
12x135 rear axle adapters (V2510901)
12 to 9mm rear adapter for quick release (V2510801 - Delivered with the wheel)
12x142 rear axle adapters (V2510701 - Delivered with the wheel)
12mm front hub cap (V2680501 - Delivered with the wheel)
12 to 9mm front adapter for quick release (V2680301 - Delivered with the wheel)
Weight:
Pair without tyre: 1840 grams
Front without tyre: 855 grams
Rear without tyre: 985 grams
Hubs:

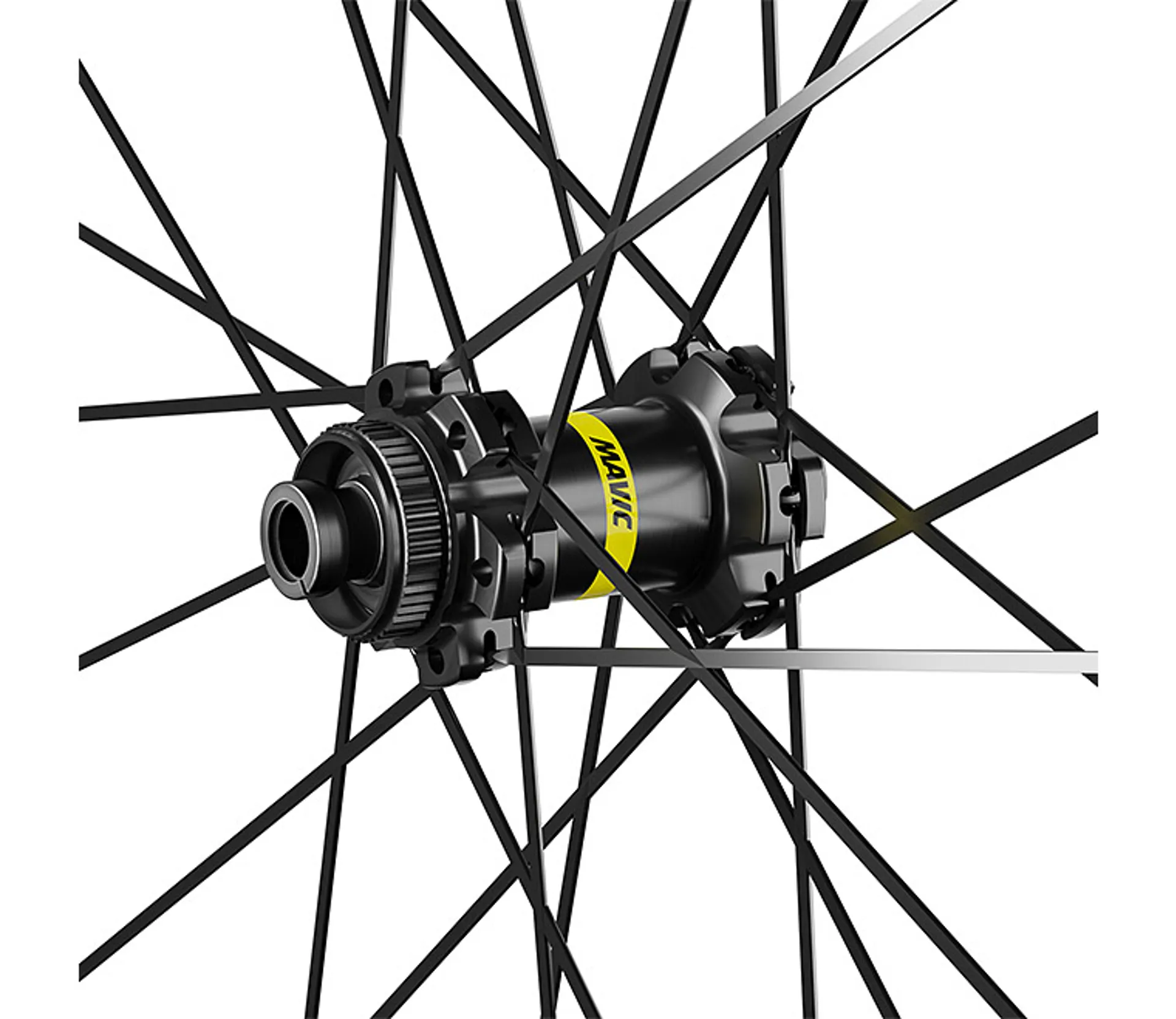

Front: Quick release and 12x100 through axle compatible
Auto adjust sealed cartridge bearings (QRM Auto), front and rear

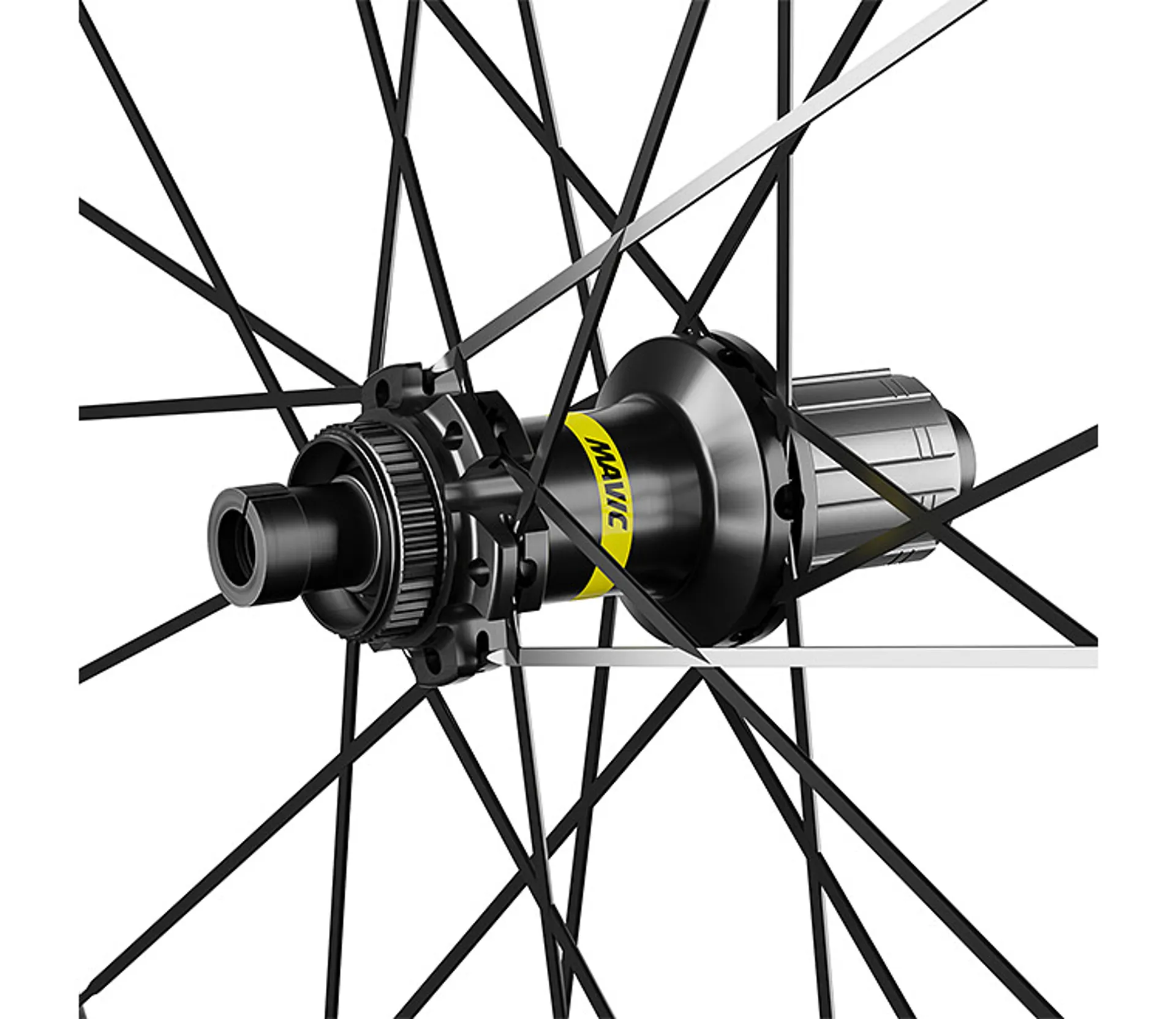

Rear: Quick Release, 12x142 and 12x135 compatible
Freewheel: Instant Drive 360
Front and rear bodies: aluminum
Axle material: aluminum
Intended Use:
Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 1 : road only
Recommended tyre sizes: 25 to 32 mm
Rims:
ETRTO size: 622x19TC Road
Height: 64mm
Use with Mavic Tubeless Tape
Material: 3K carbon fibers
Drilling: traditional
Internal width: 19 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Spokes:
Nipples: steel, ABS
Material: steel
Shape: straight pull, flat
Lacing: front and rear crossed 2
Count: 24 front and rear
Tyre:
Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Dimension: 25-622 (700x25c)
Breaker: Polyamide, from bead to bead
Casing: 127 TPI
Versions:
Disc standard: Center Lock(R) only
Color: Black only
DELIVERED WITH:
Tyre sealant syringe
Rear QR adapters for Instant Drive 360
Mavic tyre sealant (rear wheel)
Tubeless rim tape
Front QR adapters
UST valve and accessories
User guide
